Victron Battery Management System and Monitoring Kit
Victron Battery Management and Monitoring System
Ultimate Control and Monitoring with the Victron VE.Bus BMS system along side the Cerbo GX and SmartShunt. This will allow you to remotely monitor you installation using either the Bluetooth or WIFI capability.

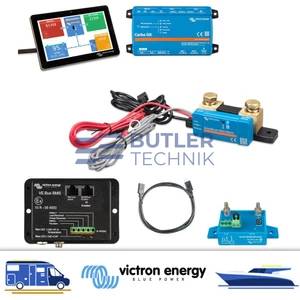

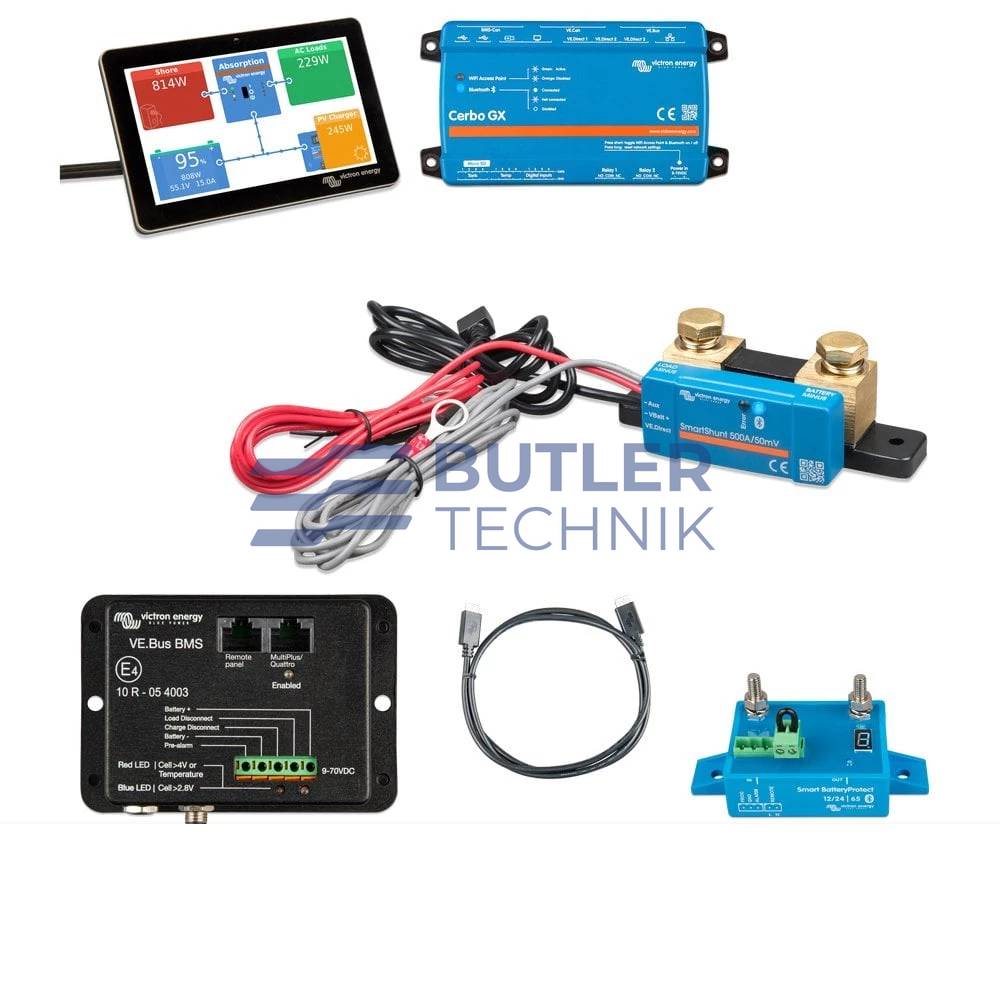

Kit Contents
- VE.Bus BMS with AC Detector
- 65amp Smart BatteryProtect
- 500A IP65 SmartShunt
- Cerbo GX
- Touch50 Display
- VE.Direct Cable

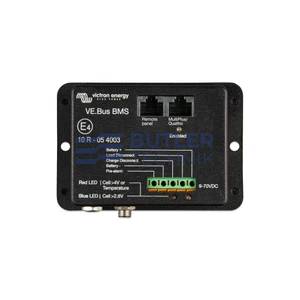

Victron VE.Bus BMS Battery Management System
VE.Bus BMS is a Battery Management System (BMS) designed to interface with and protect a single, or multiple Victron Lithium Battery Smart 12,8V & 25,6V (LiFePO4 or LFP) in systems that have Victron inverters or inverter/chargers with VE.Bus communication.
It monitors and protects the batteries against over voltage and under voltage of any individual cell, and also over temperature or under temperature conditions.
Based on the status of the battery or batteries, the BMS will:
- Generate a pre-alarm signal to alert of an imminent cell under voltage condition.
- Disable inverting in VE.Bus inverters or inverter/chargers via VE.Bus, and disable other loads via the 'Load Disconnect' terminal in the event of a cell under voltage condition.
- Disable charging in VE.Bus inverters or inverter/chargers via VE.Bus and disable other chargers via the 'Charge Disconnect' terminal in the event of a cell overvoltage, under temperature or over temperature condition.
- Remote on/off terminals.
- Ability to disable VE.Direct and VE.Can solar chargers via a GX device.
- Allowing control of the VE.Bus inverter/charger from multiple devices, like the Digital Multi Control, the VE.Bus Smart dongle and/or a GX device.
- Auxiliary power input and output terminals that allow a GX device to remain powered in the event of a system shutdown.
Part Number BMS300200200

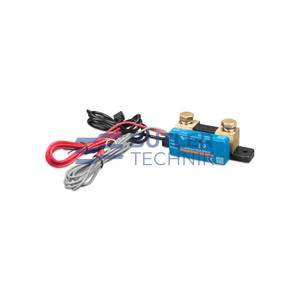

Victron IP65 500A / 50mV SmartShunt - Bluetooth Enabled
IP65 Water Proof - ideal for Boats
- Alternative to BMV-712 Battery Monitor
- Smart Enabled Bluetooth for VictronConnect App
- GX Device Connectivity via VE Direct Port
Smart Battery Shunt IP65 Water Proof Rating
The SmartShunt is an all in one battery monitor, only without a display. Your phone acts as the display. The SmartShunt connects via Bluetooth to the VictronConnect app on your phone (or tablet) and you can conveniently read out all monitored battery parameters, like state of charge, time to go, historical information and much more.
Ideal for Monitoring batteries on your boat, or in damp conditions thanks to the IP65 rating
Alternatively the SmartShunt can be connected and be read by a GX device. Connection to the SmartShunt is made via a VE.Direct cable.
The SmartShunt is a good alternative for a BMV battery monitor, especially for systems where battery monitoring is needed but less wiring and clutter is wanted.
The SmartShunt is equipped with Bluetooth, a VE.Direct port and a connection that can be used for: monitoring a second battery, midpoint monitoring or a temperature sensor.

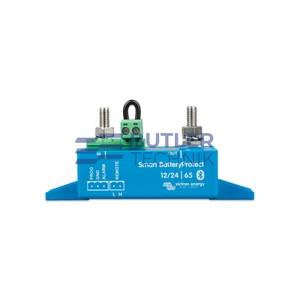

Smart BatteryProtect 24/12 from Victron Energy
The Smart BatteryProtect disconnects the battery from non-essential loads before it is completely discharged (which would damage the battery) or before it has insufficient power left to crank the engine.
When using Bluetooth to program the Smart BatteryProtect any required engage/disengage levels can be set.
Alternatively, one of nine predefined engage/disengage levels can be set with the programming pin (see manual).
If required, Bluetooth can be disabled.
The Smart BatteryProtect is a uni-directional device. It can only deal with current in one direction, so either current to a load, or current from a charger, but not both currents at the same time. In addition to this, current only can only flow from the IN terminal to the OUT terminal. In case of use with a load, the battery connects to the IN terminal, and in case of use with a charger, the charger connects to the IN terminal.
The Victron Energy Cerbo GX Remote Monitoring System
The all-new communication-centre allows you to always have perfect control over your system from wherever you are and maximises its performance. Simply connect through our Victron Remote Management (VRM) portal, or access directly, using the separate GX Touch, a MFD or our VictronConnect App thanks to its added Bluetooth capability. This latest addition to the GX-range combines all the best of connectivity, redefining smart power solutions in every way.
- Remote Console via Victron VRM
- Ultra smooth Monitoring and Control
- HDMI Connectivity for Touch50 or Touch70 Screen
- Complete Control
- Bluetooth Enabled
This communication-centre allows you to always have perfect control over your system from wherever you are and to maximise its performance. Simply access your system via our Victron Remote Management (VRM) portal, or access it directly, using the optional GX Touch screen, a Multi-Functional Display (MFD) or our VictronConnect app thanks to its Bluetooth capability.
Victron GX Touch 50 Touchscreen Display for the Cerbo GX
The GX Touch 50 is a display accessory for our Cerbo GX. The five inch touch screen display give an instant overview of your system and allow to adjust settings in the blink of an eye. Simply connected to the Cerbo GX with one cable, Their super slim waterproof design, top-mountable setup and simple installation bring a lot of flexibility when creating a crisp and clean dashboard.
- Five inch Touch screen display
- Easy and quick mounting
- Slim and waterproof

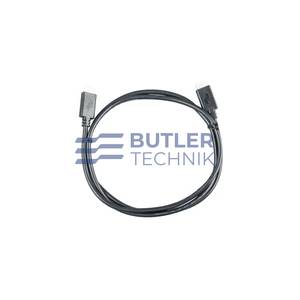

Victron Energy VE.Direct Cable For Communication with GX Devices
The VE.Direct cable is available in different lengths. There is a straight and 90 degree angle model. Please check our pricelist for all available models.
Historical Product Codes
SHU067150050BPR065022000
BMS300200000
ASS030530218
BPP900450100
BPP900455050
Available Downloads
There are no downloads available.
