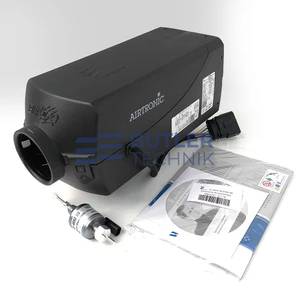

Eberspacher Espar Airtronic M2 D4 12V 4KW 13650 BTU RV Altitude Ready Heater Kit inc Easy Start PRO 7 Day Timer
A compact, quiet and economical heater.
The Eberspacher Airtronic M2 D4 L is a diesel fired 4kw (13650 BTU) heater ideal for RV's and large motorhomes .The Eberspacher M2 D4 Airtronic offers optimised fuel efficiency, a range of operation modes and unsurpassed safety standards. Programmable independent heating (does not use heat from the engine) for all types of road vehicle use. Certified for installation in passenger areas and in proximity to dangerous substances.
Real-time temperature monitoring, with latest heat output modulation technology
PLEASE NOTE - Vehicle Fuel tank integration can be achieved with an Eberspacher UK approved fuel pick-up kit.
Benefits of the new Airtronic M2 Include;
Stepless heating performance control.
This allows for a more dynamic heat output, that automatically modulates to maintain required temperature. The new “Stepless output control” has also improved the operating sound of the Airtronic M2
Noise levels optimised.
The new AM2 Kit also includes the new, almost silent, Eberspacher digital fuel dosing pump with mechanical damping ring and intelligent current control.
Low maintenance.
The Airtronic 2 has an potential service life of 5000 hours. Of course this depends on installation and how the unit is used. It is advised you have your Eberspacher serviced annually to ensure your heater is working as efficiently as possible.
Automatic Altitude Adjustment.
Altitude adjustment will be automatically handled by the Eberspacher Airtronic 2 up to 3000m above sea level; no additional altitude kit is required, the AM2 has an integrated altitude sensor.
OBD On-board diagnostics with the EasyStart PRO.
Fault display via the Easy Start PRO. The Airtronic M2 coupled with an Easy Start PRO will give a text-based fault description, reducing confusion and saving time diagnosing the issue.
For in depth diagnosis of potential heater problems, heater and controller fault codes are stored in the workshop menu of the controller.

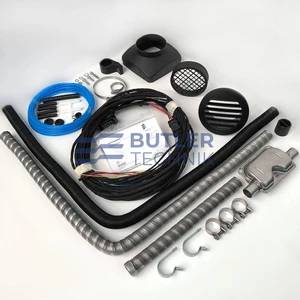

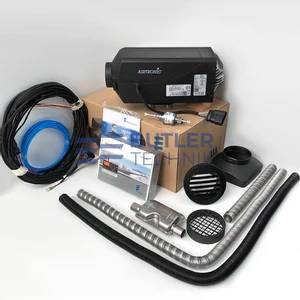

Single outlet kit contents:
- Eberspacher Airtronic D4 M2 self regulating air heater with EasyStart PRO 7 Day Timer Diagnostic Reader
- All electrical harnesses and connections, 6m Switch & power harness
- Stainless steel exhaust pipe with silencer, clamps and p clips (Additional lengths of 24mm Exhaust pipe available if required)
- 1 metre of combustion Intake pipe
- 90mm Air outlet (Additional air outlets are available if required)
- Fuel system, complete with fuel metering pump, fuel pipe & hose clips - no stand-pipe included.
- 0.5 metre x 90mm flexible ducting (Additional ducting required? Please look in our Ducting section)
- Air entry grille
- All necessary clips and screws for standard installation included
- Comprehensive installation manual
- Eberspacher M2 D4L Airtronic 24 months warranty. (Return to Butler Technik)
Please note; this kit excludes a fuel pick up/standpipe please look in the installation accessories
Bespoke kits are available, or if you require any more accessories for this heater kit please contact us with your requirements.
Available Downloads
- Eberspacher Airtronic M2 D4L Commercial and RV Heater Spare Parts List
- Eberspacher Airtronic M2 D4L Technical Installation and Wiring Diagrams
- Eberspacher Airtronic M2 D4L Workshop Manual Fault Code Troubleshooting and Repair Instructions
- Eberspacher Airtronic M2 D4L P000 Fault Codes
- Eberspacher Airtronic M2 D4L Product Datasheet
- Eberspacher Airtronic M2 D4L EasyStart Pro Wiring Diagram
- Eberspacher Airtronic M2 D4L Technical Information and Wiring Diagrams
- Eberspacher Airtronic M2 D4L Installation Manual
